AVC-NPE81F2D 요약정보 및 구매

8MP H.265 DUAL LENS PANORAMIC TURRET NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• 8MP (5120×1440) H.265+, H.265, H.264+, H.264, MJPEG
• Max. resolution: 5120×1440

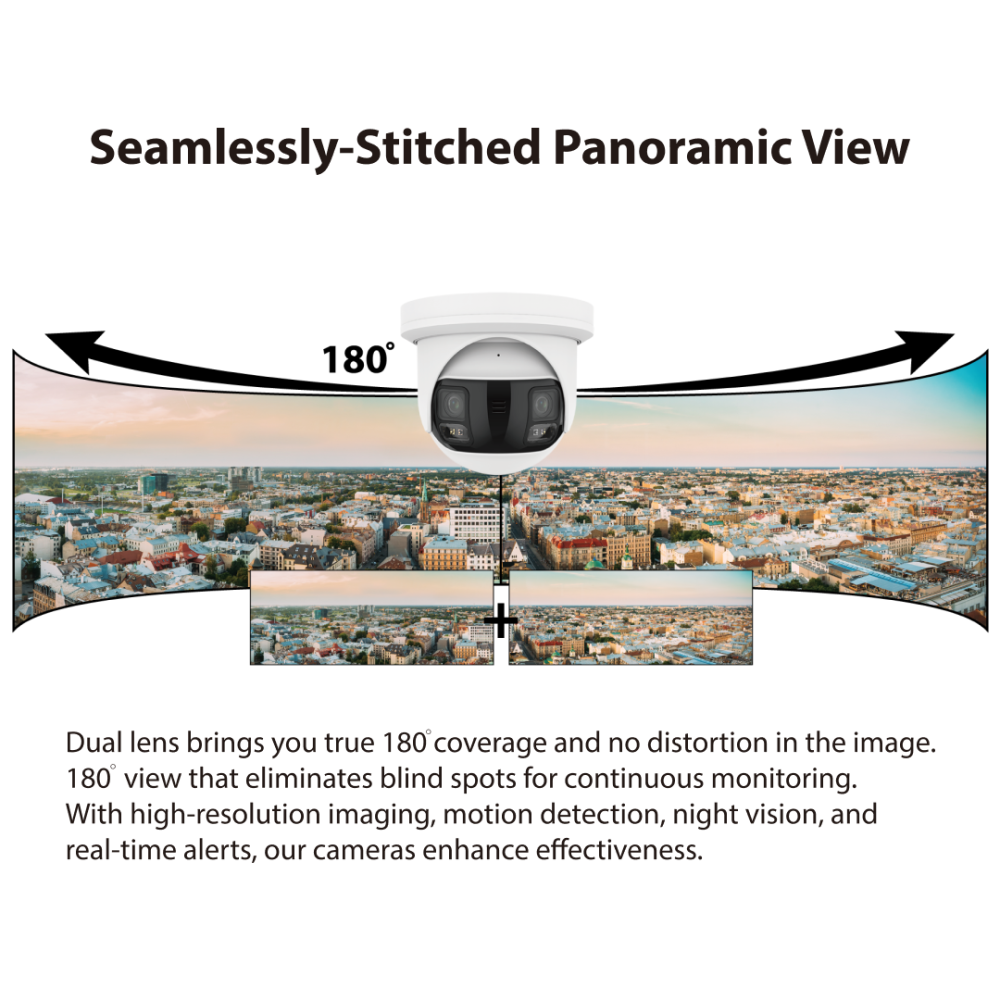

• Dual Lens Stitched Panoramic View (2 x 2.8mm Fixed Lens)

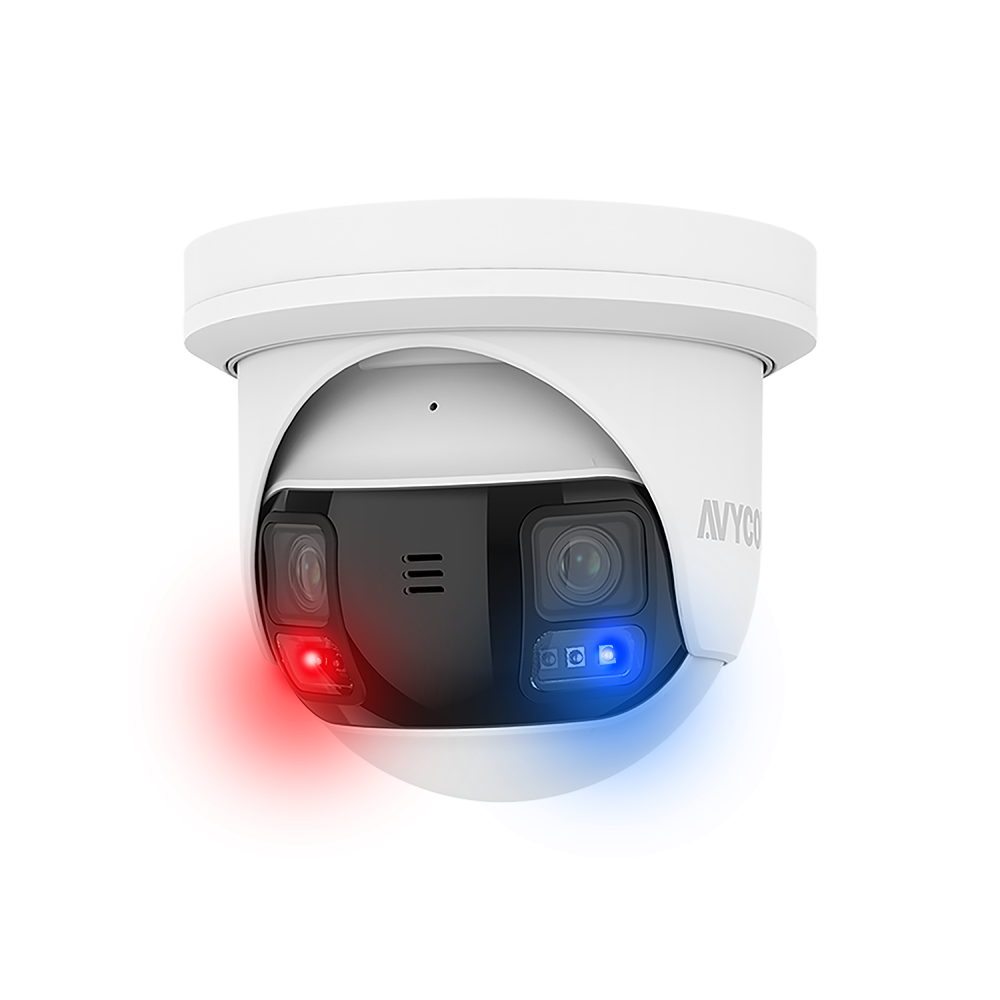

• Full Color / Active Deterrence Camera
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics

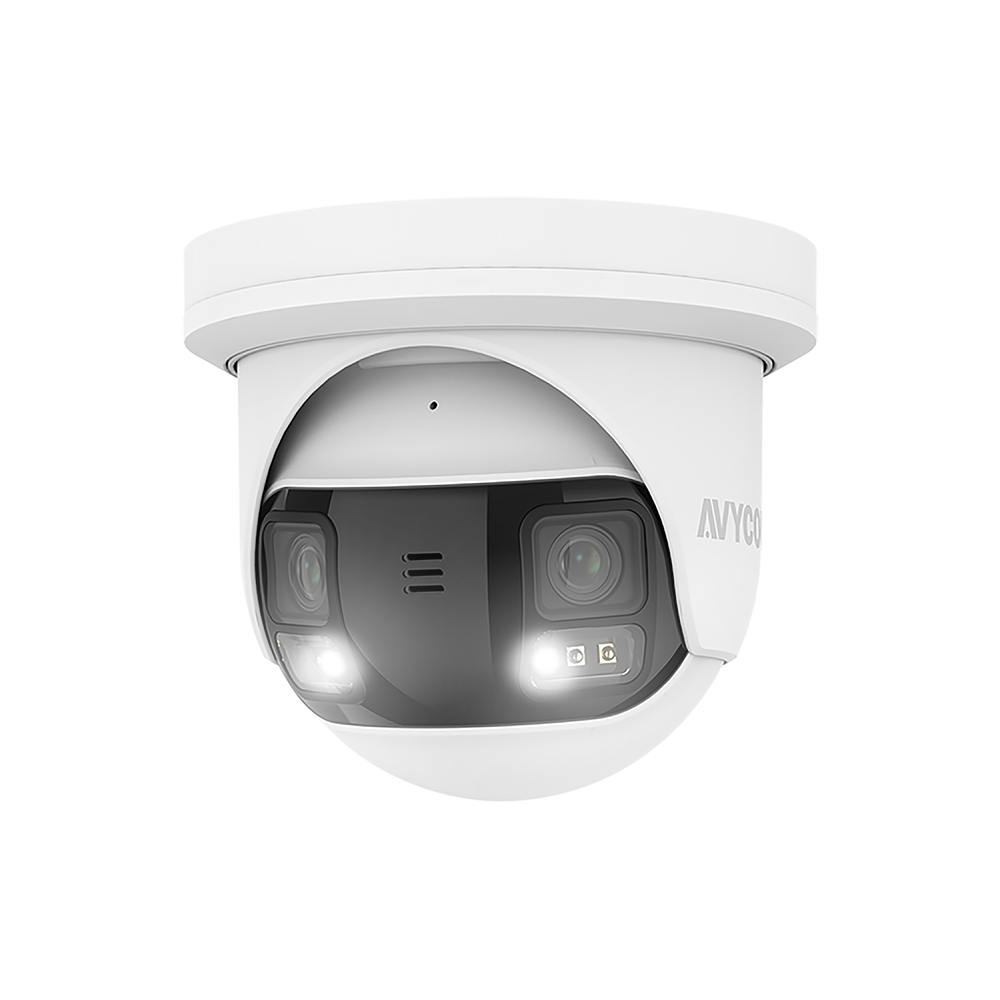

• White Light LED / Strobe (Blue & Red) Light
• Built-in MIC / Speaker
• Built-in micro SD card slot with video and still image
capture function (up to 256GB)
• IP67 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE
(Mobile APP) and AVYCON CMSONE (CMS)

Specifications Features Technology Documents Software Accessories

8MP H.265 DUAL LENS PANORAMIC TURRET NETWORK CAMERA

• 8MP (5120×1440) H.265+, H.265, H.264+, H.264, MJPEG

• Max. resolution: 5120×1440

• Dual Lens Stitched Panoramic View (2 x 2.8mm Fixed Lens)

• Full Color / Active Deterrence Camera

• 3D DNR, WDR, HLC, BLC, ROI encoding

• Intelligent Analytics

• White Light LED / Strobe (Blue & Red) Light

• Built-in MIC / Speaker

• Built-in micro SD card slot with video and still image capture function (up to 256GB)

• IP67 ingress protection

• DC12V/PoE power supply

• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)

Features - WDR.png

Features - InfiniteStar.png

Features - H265.png

Features - Built-In Mic.png

Features - IP67.png

Features - Intelligent Video Analytics.png

Features - Advanced Edge Recording.png

Features - P2P.png

Features - Smart IR.png

VIDEO
Image Sensor	1/2.7" Progressive Scan CMOS *2
Max. Resolution	5120*1440
Min. Illumination	Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed	1/5 s to 1/20000 s
Slow Shutter	Yes
Day & Night	IR cut filter
Zoom	N/A
LENS
Focal Length	2.8 mm Fixed
FOV	Horizontal field of view: 180°
Aperture	F1.0
ILLUMINATOR

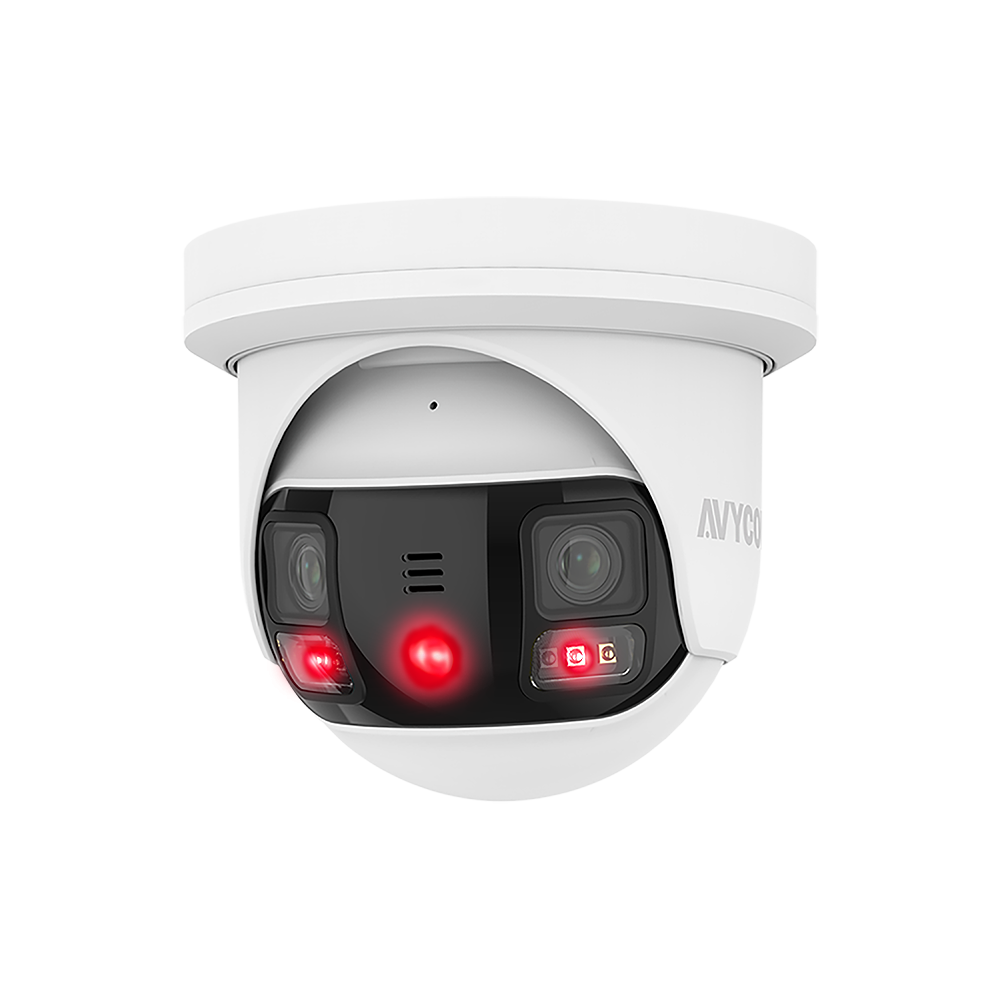

Supplement Light Range	IR Distance: Up to 98ft /Warm light: up to 49ft
Supplement Light Type	IR & Warm light
VIDEO
*Main Stream	60/50Hz@15fps; 5120x1440; 4608x1296; 4096x1152; 3840x1080; 3072x864
Sub-Stream	60/50Hz@15fps; 2048x576; 1536x432; 1024x288
Video Compression	Main stream: H.265+/H.265/H.264+/H.264
	Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate	8 kbps to 16384kbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Region Of Interest (ROI)	N/A
Audio	N/A
Audio Compression	G.711a/G.711u
NETWORK
Protocols	IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE,
API	Onvif ( Profile S, Profile G, Profile T),Http API
Simultaneous	Live View Up to 15 channels
User/Host	7 User
Security	Password protection, complicated password, HTTPS encryption, IP address filter,control timeout settings
Client	VMS
Web Browser	IE11, Chrome 57+, Firefox 52+, Safari 11+
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	DWDR
Image Settings	Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser
Privacy	4 privacy masks
INTERFACE
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Micro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Alarm	Built-in red & bule flashing lights
Audio	1 Built-in MIC, Built-in Speaker
Reset Button	Supported
EVENT
Basic Event	Motion detection
Deep Learning Function	Face Recogniton, Pedestrian&Vehicle Detection, Line Crossing, Object Detection, CrossCounting, Heat Map, Crowd Density,
	Queue Length, License Plate Recognition, Intrusion,Region Entrance, Region Exiting
GENERAL
Power	DC 12V/POE, max. TBD
Protection	IP67
Operating Condition	-22 °F to 149 °F(-30 °C to 60 °C ). Humidity 90% or less (non-condensing)
Material	Metal
Dimension	Ø 4.3" × 5"(Ø 108 mm × 127 mm )

*Highest main stream resolution (5120x1440) is not supported on the following PoE NVR models: AVR-NSV04P4, AVR-NSV08P8, AVR-NSV16P16 Please contact our sales department for the most updated compatible model NVR's that supports highest main stream resolution (5120x1440).
