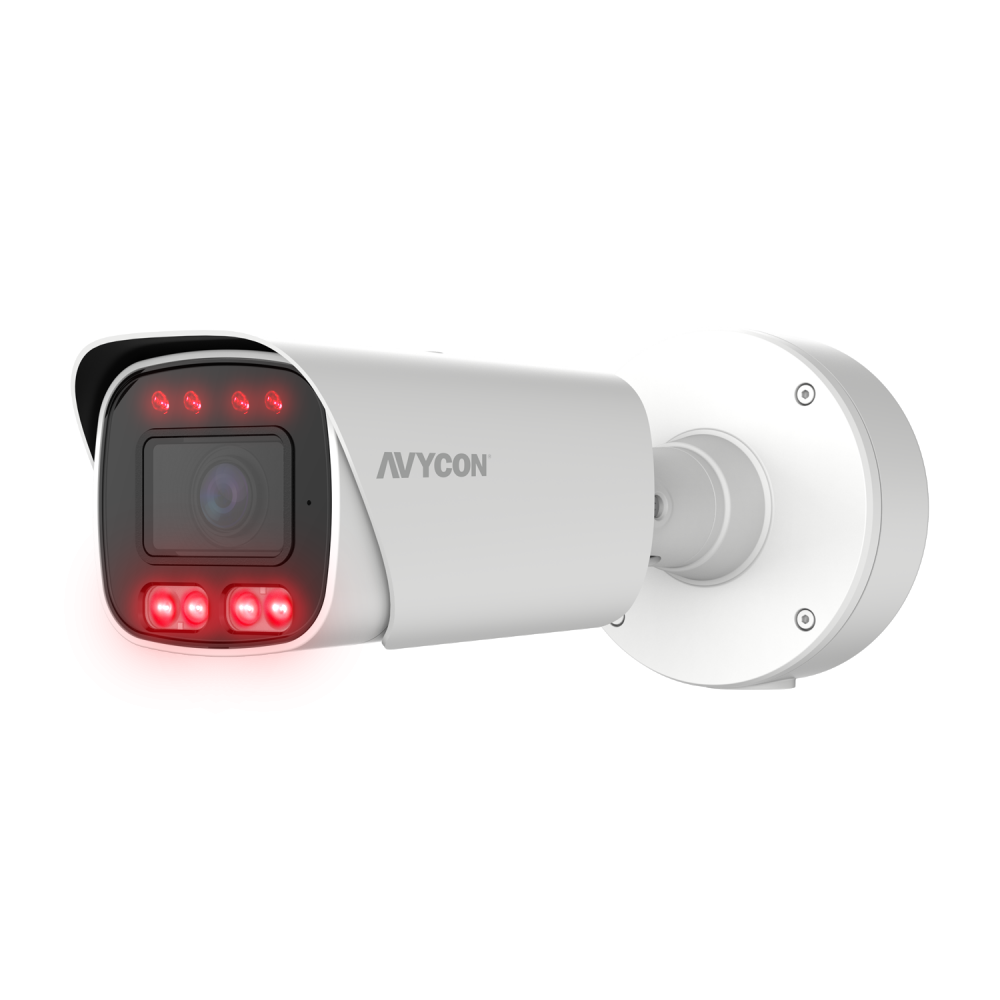

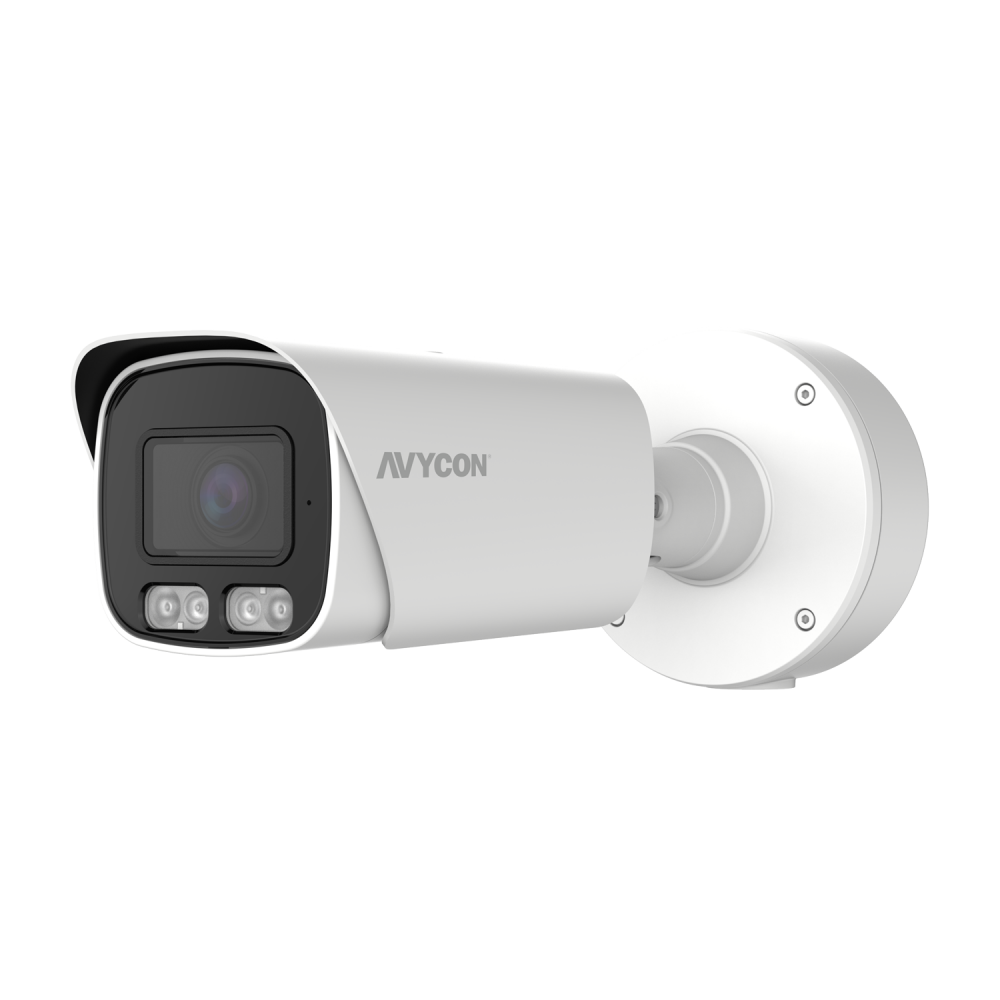

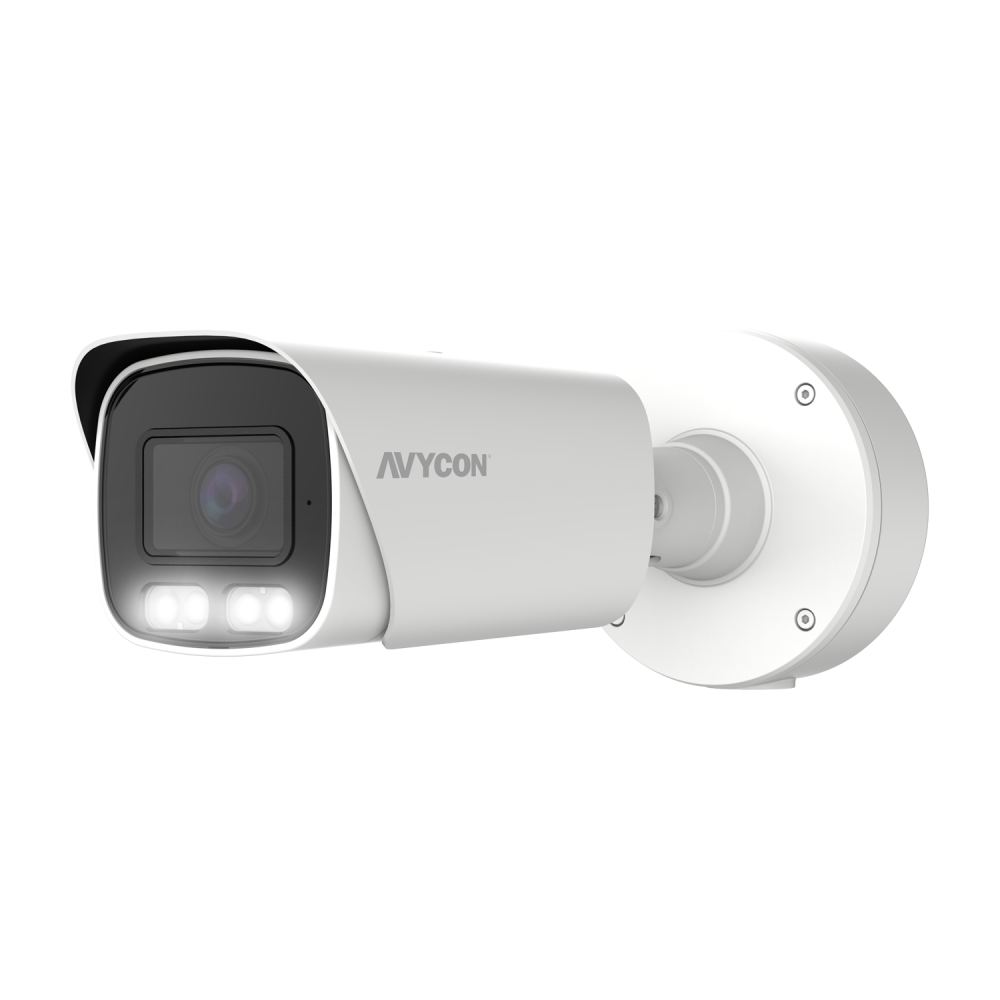

8MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
• 8MP (3840 X 2160) @ 30fps
• Max. resolution: 3840 X 2160
• H.265+/H.265, H.264+/H.264, MJPEG Encoding
• Full Color Camera
• 5~50 mm Motorized Lens (F1.2 ±5%)
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics
• White Light LED
• Built-in MIC / Speaker
• Built-in micro SD card slot with video and still
image capture function (up to 512GB)
• P67 / IK10 / NEMA 4X
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE
(Mobile APP) and AVYCON CMSONE (CMS)
| VIDEO | |
| Imaging Device | 1/1.8" |
| Effective Pixels | 8MP 3840(H)×2160(V) |
| Scanning System | Progressive CMOS |
| Min. Illumination | Color: 0.0008 Lux @ (F1.7, AGC ON);0 Lux with IR |
| LENS | |
| Focal Length (Zoom Ratio) | 8-32mm（fast zoom） |
| Max. Aperture Ratio | F1.7 to F 1.76 |
| Angular Field of View | H:40(W)-14(T)° V:27(W)-10(T)° D:49(W)-17(T)° |
| Min. Object Distance | W:1.5 m ∼ INF , T:2.5 m ∼ INF |
| Iris Type | Precise iris |
| OPERATIONAL | |
| IR LED | 8 |
| WarmLight | 4 |
| IR Viewable Length | Up to 100m |
| WarmLight Viewable Length | Up to 30m |
| Type of complementary light | Default warm light, switchable infrared light |
| Motion Detection | Off/On (8 Level) |
| Wide Dynamic Range | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode/Day&Night Mode/Smart IIIumination |
| White Balance | Auto/Manual |
| Electronic Shutter Speed | 1/5 ~ 1/20000s |
| On-Board Storage | Micro SD slot, up to 512GB |
| Alarm | 2 input，2 output |
| Audio | 1 input，1 output，1 Built-in microphone |
| Custom Voice | Yes |
| Hardware Reset | Yes |
| Smart Feature | Face Recognition,
Pedestrian & Vehicle , Line Crossing , Object Detection, Crossing
Counting, Heat Map, Crowd Density , Queue Length , License Plate ，Rare Sound， Intrusion，Region Entrance，Region Exiting |
| LPR Vehicle Speed | Up to 120km/h |
| NETWORK | |
| Ethernet | RJ45(10/100BASE-T) |
| Video Compression Format | H.265/H.264/H.265+/H.264+/MJPEG |
| Resolution | Main Stream @30fps
8MP(3840x2160),5MP(3072x1728,2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080),720P(1280x720) Sub Steam @30fps 1080P(1920x1080),720P(1280x720),VGA(640x480) Mobile Stream @30fps VGA(640x480), QVGA（320x240） |
| Video Quality Adjustment | 256Kbps ~ 16Mbps |
| Bitrate control method | CBR/VBR |
| IP | IPv6 |
| Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Security | IP address lter;complicated password;Authenticated username and password |
| Application Programming Interface | ONVIF( Prole S/G/T) |
| Web Viewer | IE10/11 Safari V12.1 above Firefox V.52 above Google chrome V.57 above Edge V.79 above |
| ENVIRONMENTAL | |
| Operating Conditions | -35∼+60°C/less than 90% RH |
| Ingress Protection | IP67；IK10；NEMA 4X |
| ELECTRICAL | |
| Input Voltage / Current | D12V/POE |
| Power Consumption | DC12V：max 10.24W； POE（48V）：max 12.28W |
| MECHANICAL | |
| Material | Metal |
8MP H.265 LONG RANGE LPR BULLET NETWORK CAMERA
